Hospital Delivery Robot
Hospital Delivery Robot

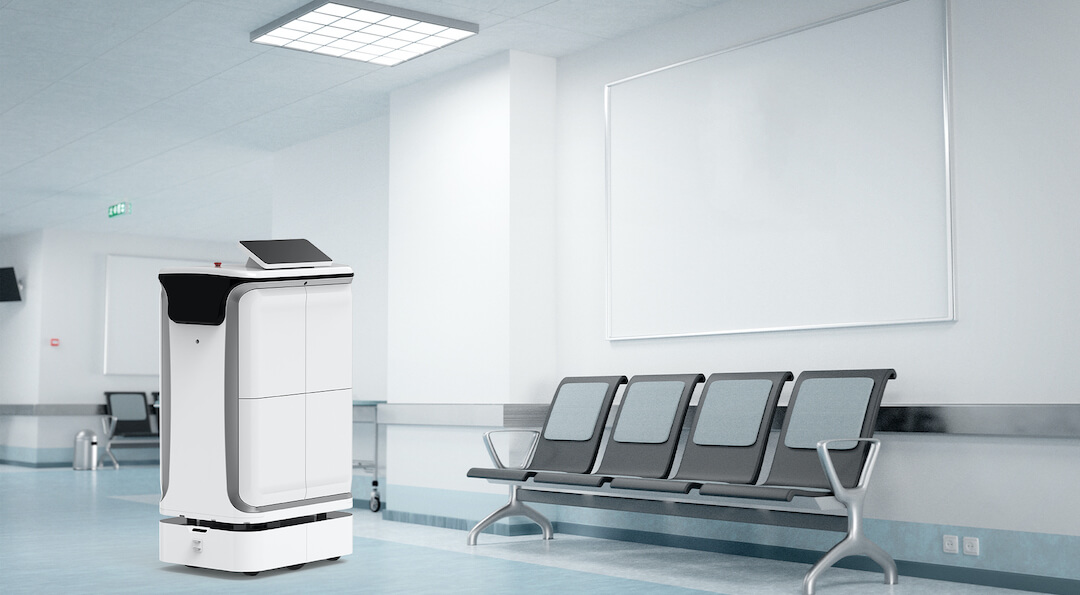

Hospital delivery robot is an intelligent service robot launched based on the pain points such as extremely heavy hospital delivery tasks, low timeliness and easy cross infection. The robot is equipped with functions such as autonomous call elevator door control, automatic charging, self-disinfection, video card retention, etc. It can be on standby for 7*24 hours at any time, and can be unified scheduling through the background system to maximize the logistics benefits of the hospital.
Modular design
Lower maintenance costs
More stable quality
Auto Sterilization
Automatic ultraviolet disinfection in cabin. Prevent sample contamination
Video Retention
Take and put articles on video to retain certificates. Avoid human error
Autonomous Navigation
Vision and Radar fusion Slam technology to large-scale cross floor autonomous navigation
Electricity Management
Low battery automatic return charging pile supports.
Dispatching Management
Supports real-time scheduling and monitoring of multiple
Obstacle avoidance
Solve the collision problem in crowded situations
Self riding elevator
Linkage with elevator/access control. Self riding elevator/gate
Self commuting
Regularly go to work. Automatic return to charging pile upon arrival

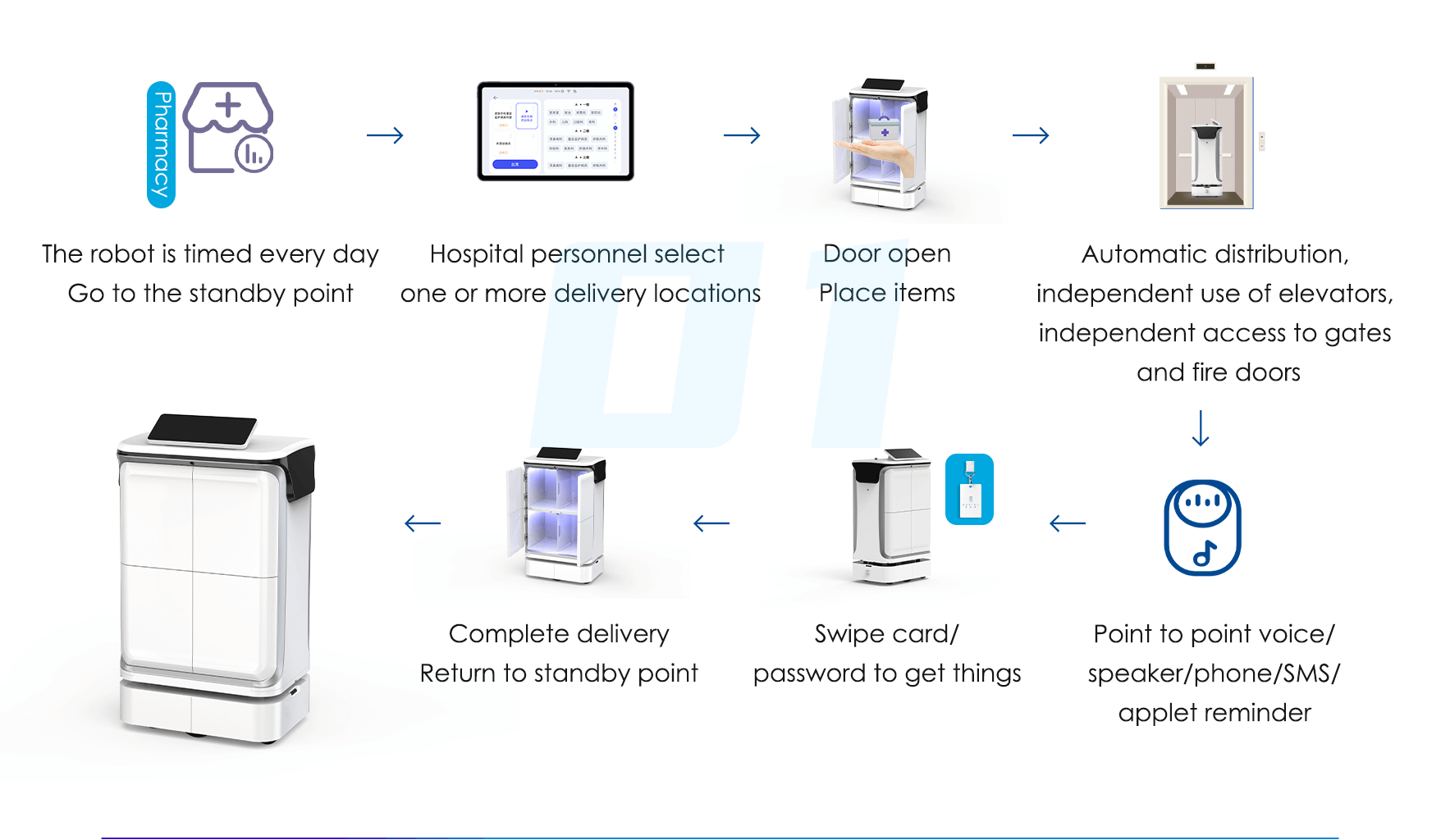

Multi point delivery
The robot automatically goes to the central pharmacy or emergency pharmacy for standby every day, and returns to the charging pile automatically after work at the point. The robot can distribute up to four wards at a time, and the number of cabins can be adjusted independently.
Multi point delivery

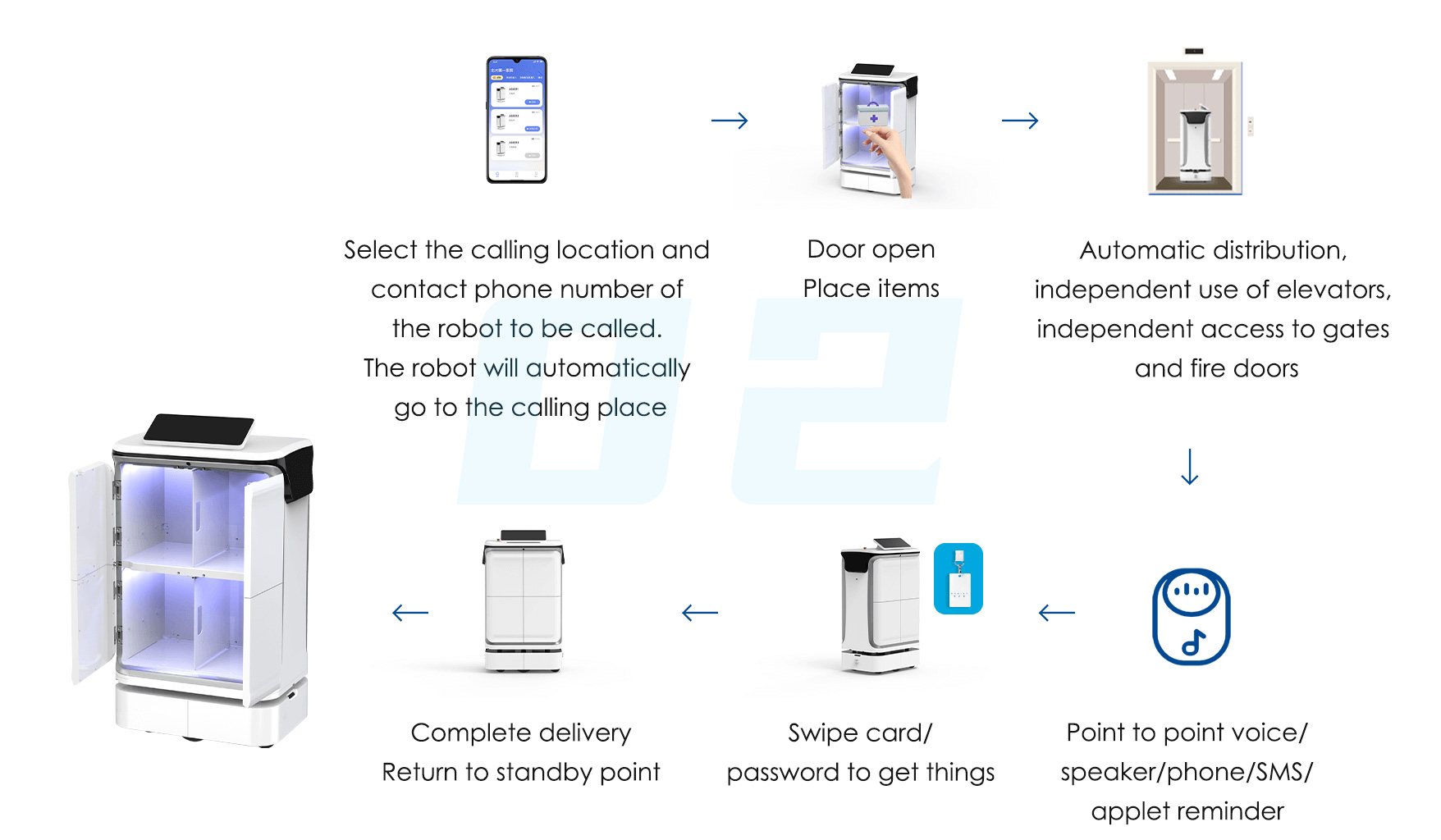

Call Robot
When the robot is not around, the support workers can use the summoning function to let the robot come to the summoning place and perform multi-point distribution tasks. For example, call the robot to the pharmacy/static dispensing center to distribute drugs, or call the robot to the nurse station to retrieve empty boxes, or call the robot to the nurse station to retrieve returned drugs.
Call Robot
录像留证

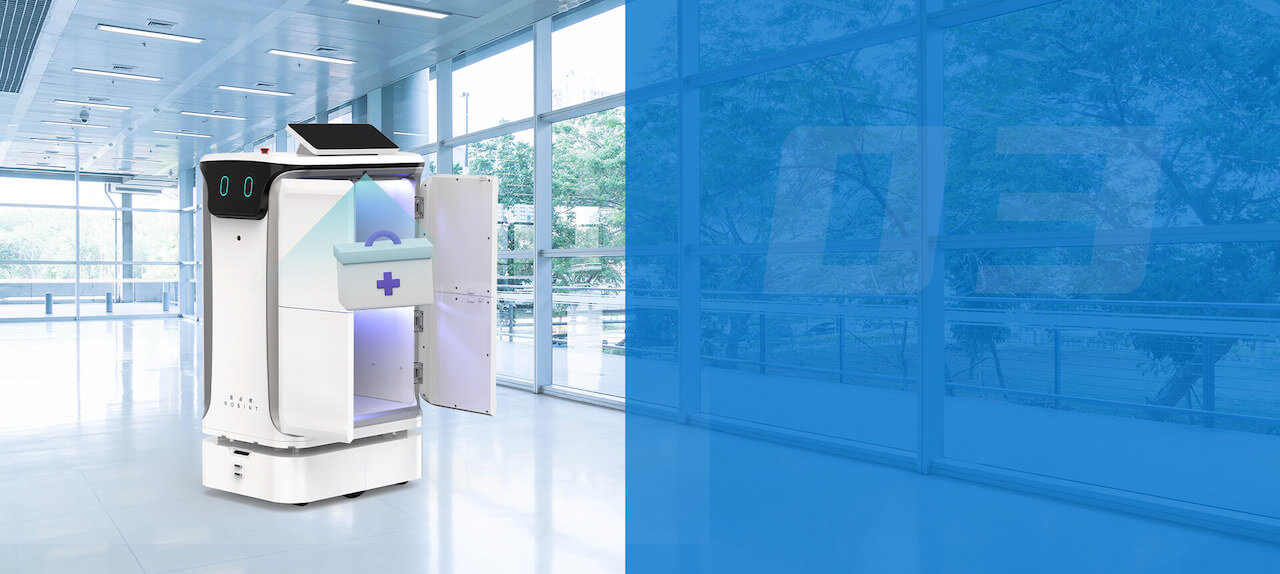

Video Retention
When the robot performs the delivery task, it will record the evidence at the stage of placing objects.
紫外灯消毒

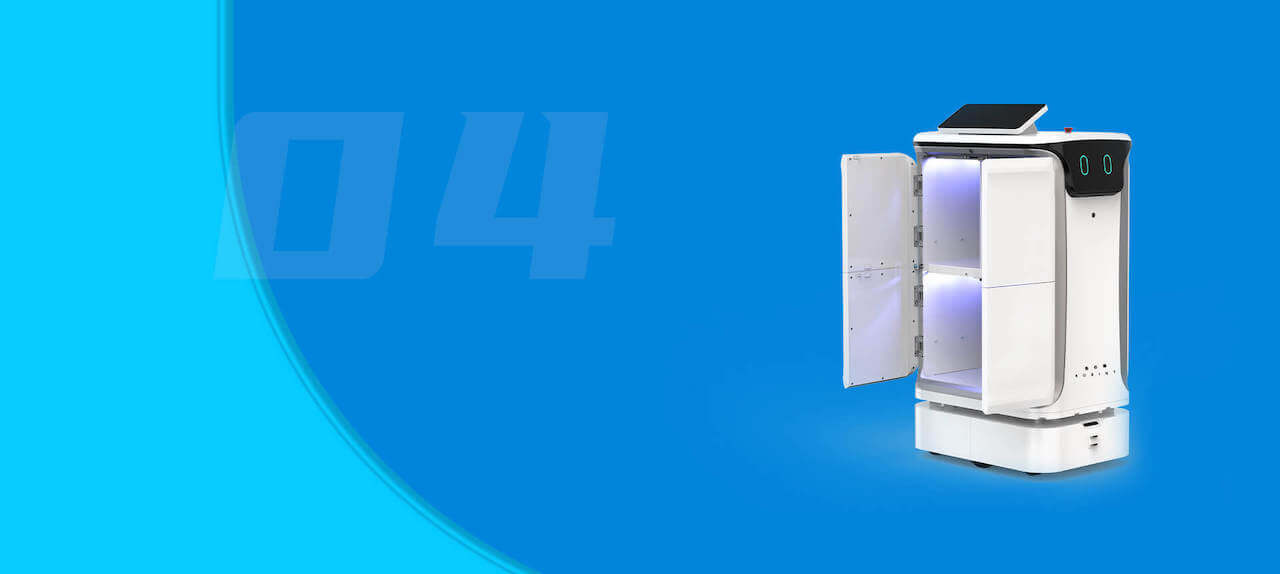

Ultraviolet Lamp
The robot is equipped with a built-in ultraviolet lamp, which supports manual and automatic disinfection.
认证模块

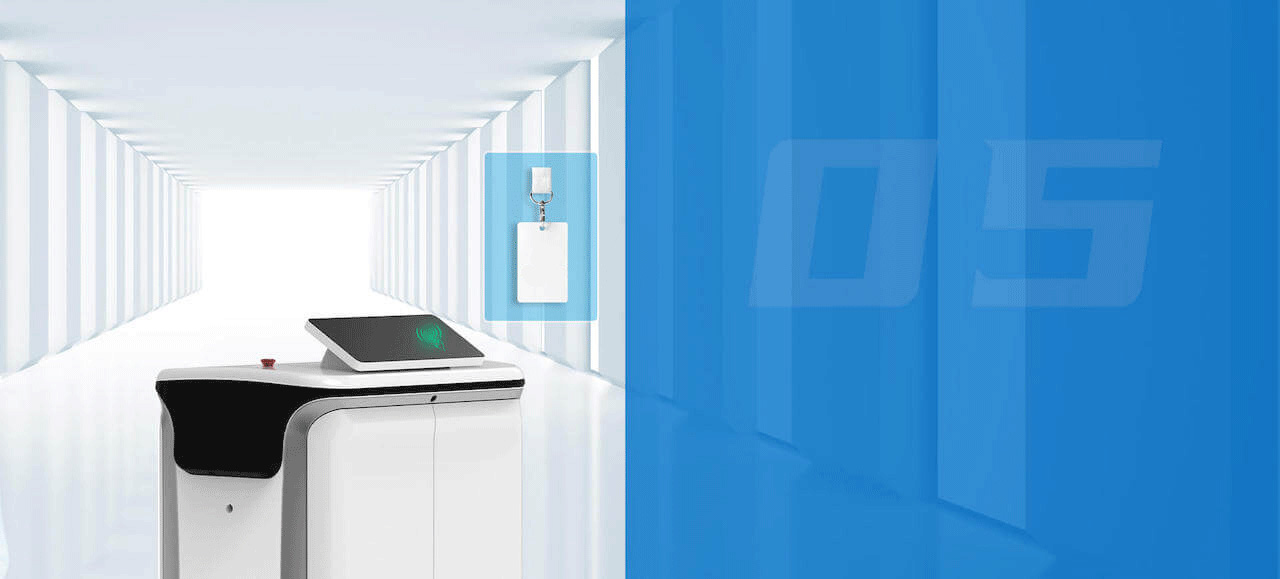

Security module
The materials in the designated cabin door shall not be taken by mistake or missed.
Overall system composition
Charging pile
Certification module
Intelligent doorbell

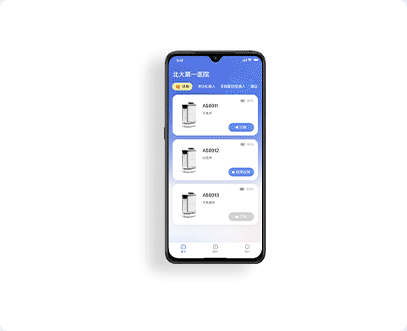

Supporting APP
Remote call data statistics machine monitoring
Overall system composition

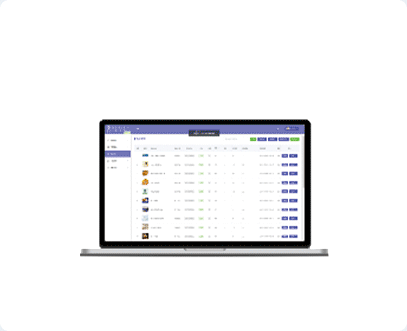

Multi task scheduling big data analysis
Electric door module

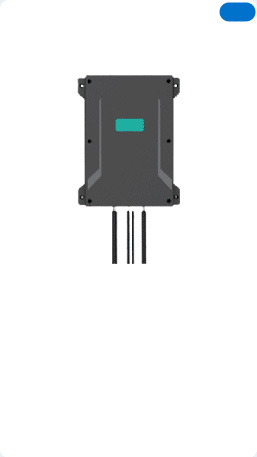

Ladder control module
Parallel control does not affect normal use
Parameters
Product size
1400 * 570 * 74 mm
Module size
Layer 648 * 395 * 462 mm
Compartment 322 * 395 * 462 mm
Hull volume
118 L/Layer
59 L/Compartment
The weight
123 kg
Bearing
Single-layer bearing capacity 50 kg
Machine bearing capacity 100 kg
Speed
0~1.2m/s
Climbing
5°
A camp
15mm
Minimum channel distance
750 mm
Ride height
40 mm
Battery life
8 ~ 12 h
Charging time
4 Hours
The machine noise
53.5db
Basis function
Multi-point distribution, call, autonomous recharge, autonomous elevator ride, autonomous call, intelligent drawing
